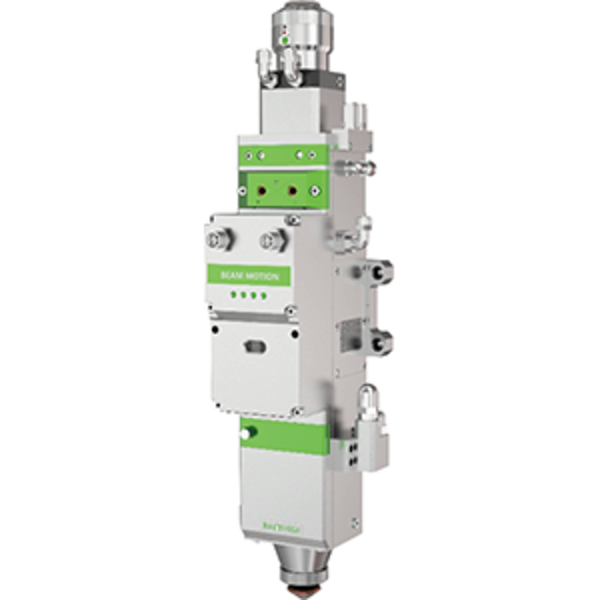

Description
Features
- Communication and auto focus control based on EtherCAT.
- 4-Color LED lamps to monitor status.
- Optimized optical configuration and smooth gas circuit.
- D37mm combo lens to support laser up to 6KW.
- Top cover glass is used to further protect collimation lens.
- Drawer type cover glass holder to facilitate replacement.
- Standard QBH/QD (LLK-D) interfaces to work with different fiber lasers.
Technical Data
| Fiber Interface | QBH , QD | Collimation Length | 75mm, 100mm | |
| Clear Aperture | 35mm | Focusing Length | 150mm , 200mm | |
| Auto Focus | Nozzle Styles | Single , Double , Custom | ||
| – Range | +15 ~ -20mm | Diameter of Nozzle Tip | ||
| – Acceleration | ≤10m/s² | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, | ||
| – Velocity | ≤15m/min | 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm | ||
| – Accuracy | ≤ 50μm | Assist Gas Pressure | ≤ 30 bar | |
| Cover Glasses | Weight | ~ 6.2 kg | ||
| – Top | Φ38.1*1.6mm | |||
| – Bottom | Φ37*7mm |
